Balder
Experience the revolution. IRnova eSWIR T2SL technology, originally designed for space, now on the market in VGA resolution.
Description

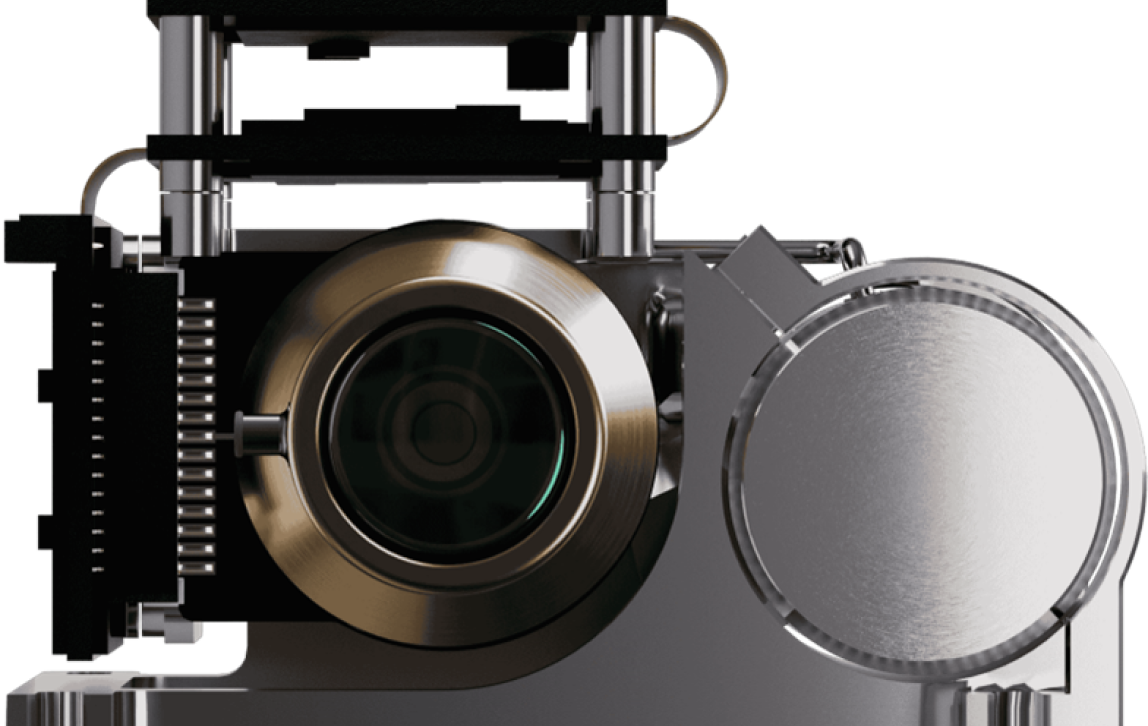

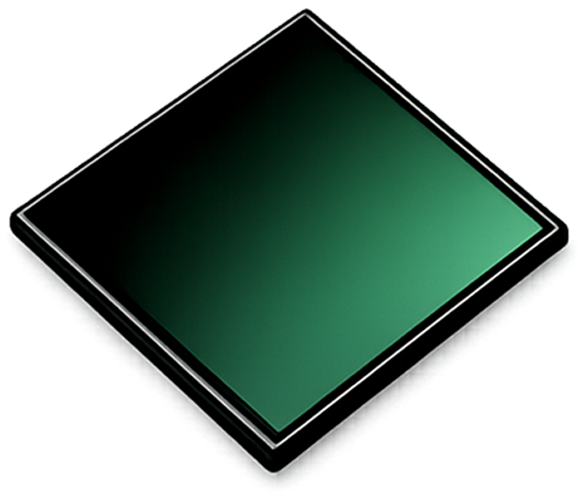

With the Balder, IRnova's T2SL now brings the ultimate sensitivity, uniformity, stability and resolution to the full shortwave spectral range. The detector is available in three formats: SWaP rotary, SWaP split linear, and also in FPA format for manufacturers wishing to integrate into a TEC cooled system.
Applications
Space monitoring
Machine vision
Enhanced visibility through degraded environments
Industrial monitoring
Active imaging with SWIR light source
Spectrometry
General information
Application:
General purpose
Format:
640x512
Technology:
T2SL
Pixel pitch:
15 μm
Typical detector
performance
Spectral range:
0.9 - 2.5 μm
F number options:
F/1.2, F/2
Pixel operability:
99.9%
Dark current at 180 K:
<0.5 µA /cm2
PRNU:
< 2%
MTF at Nyquist:
> 60 %
Proximity electronics
Read-out electronics
Read-out modes:
Windowing, ITR, IWR and IMRO
Supply voltage:
5 V
Frame rate:
up to 300 Hz @ full resolution
E ectrical interfaces:
Camera Link
Cooler control and proximity electronics included
IDDCA Parameters
Cooler options:
RMs1 or K588
Power consumption:
< 2 W
Without proximity electronics
Cool down time:
< 3 min
Cooler voltage:
12 V
Weight and dimensions:
240g (RMs1), 330g (K588)
143x76x62 mm
Cooler MTTF:
> 15 000h (RMs1), >35 000 (K588)
Environmental conditions:
MIL- STD-810
Downloads
Product leaflet
T2SL
Balder
EvalKit
Building something new? Our evaluation kits have everything you need to try our detectors and design your camera system. They’re modular and include a power supply, frame-grabbing electronics, image acquisition software and optics.
Plug in and get going in minutes!
Technical characteristics described above are not contractual and may change without prior notice. This is revision 1.0
