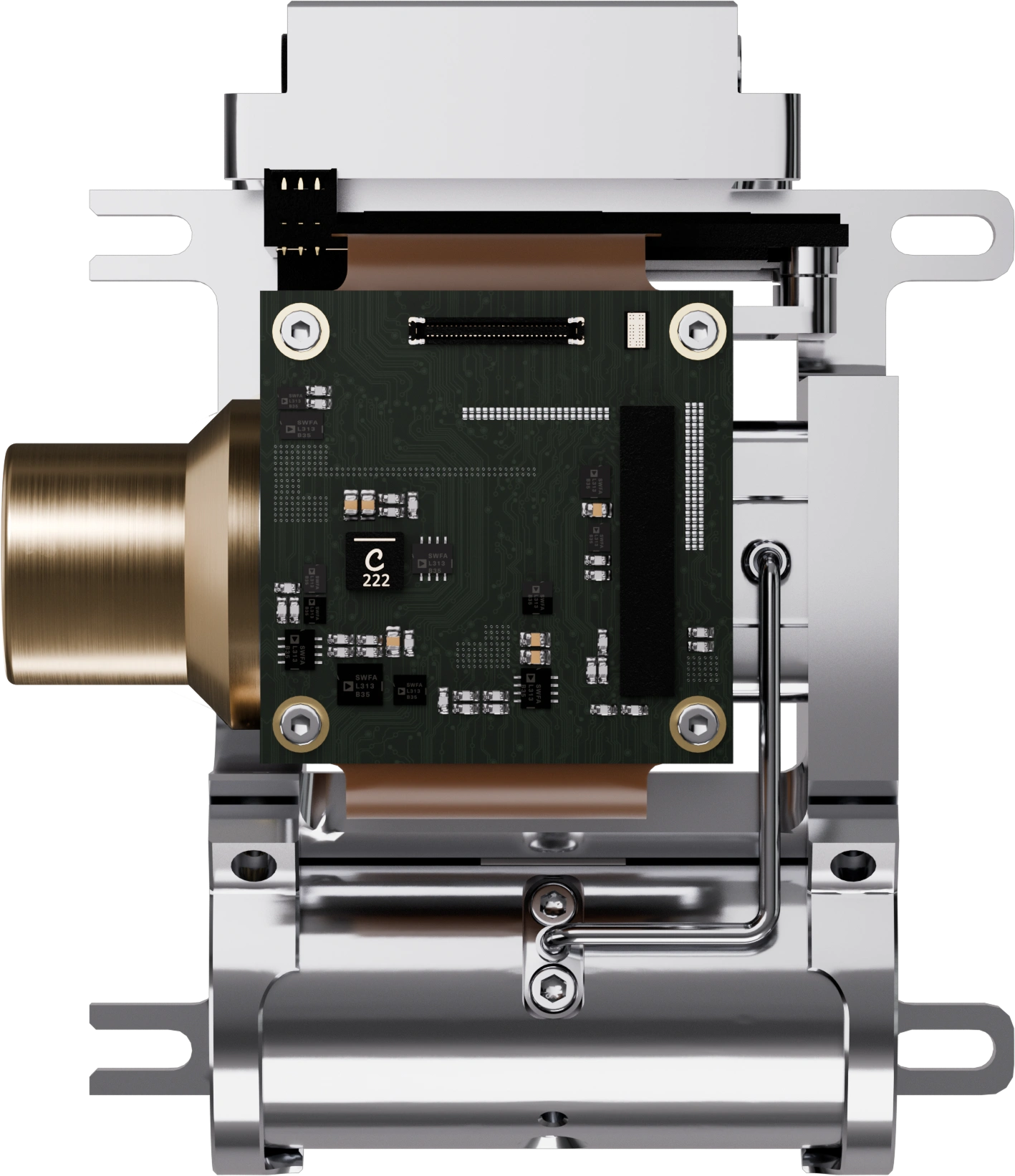

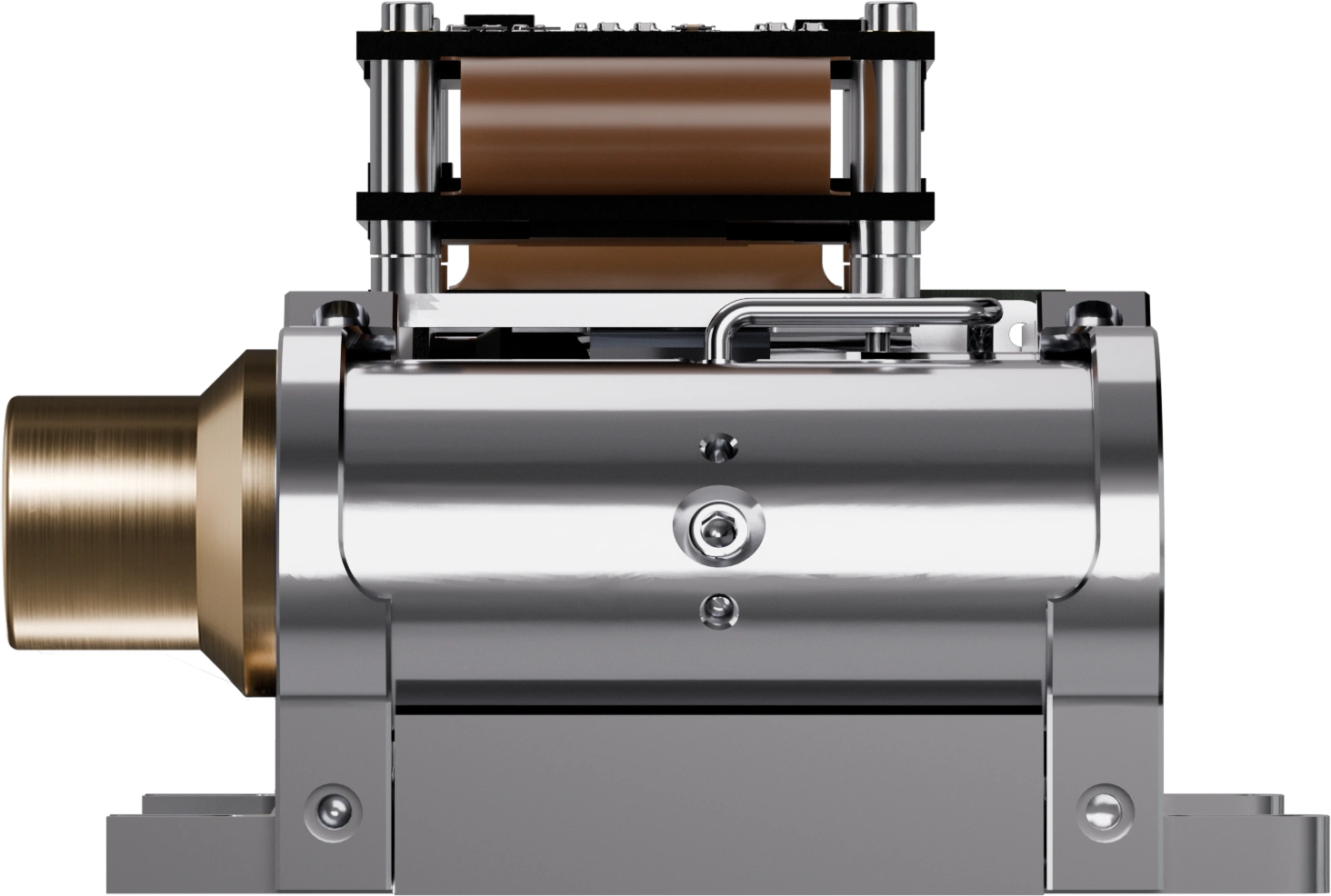

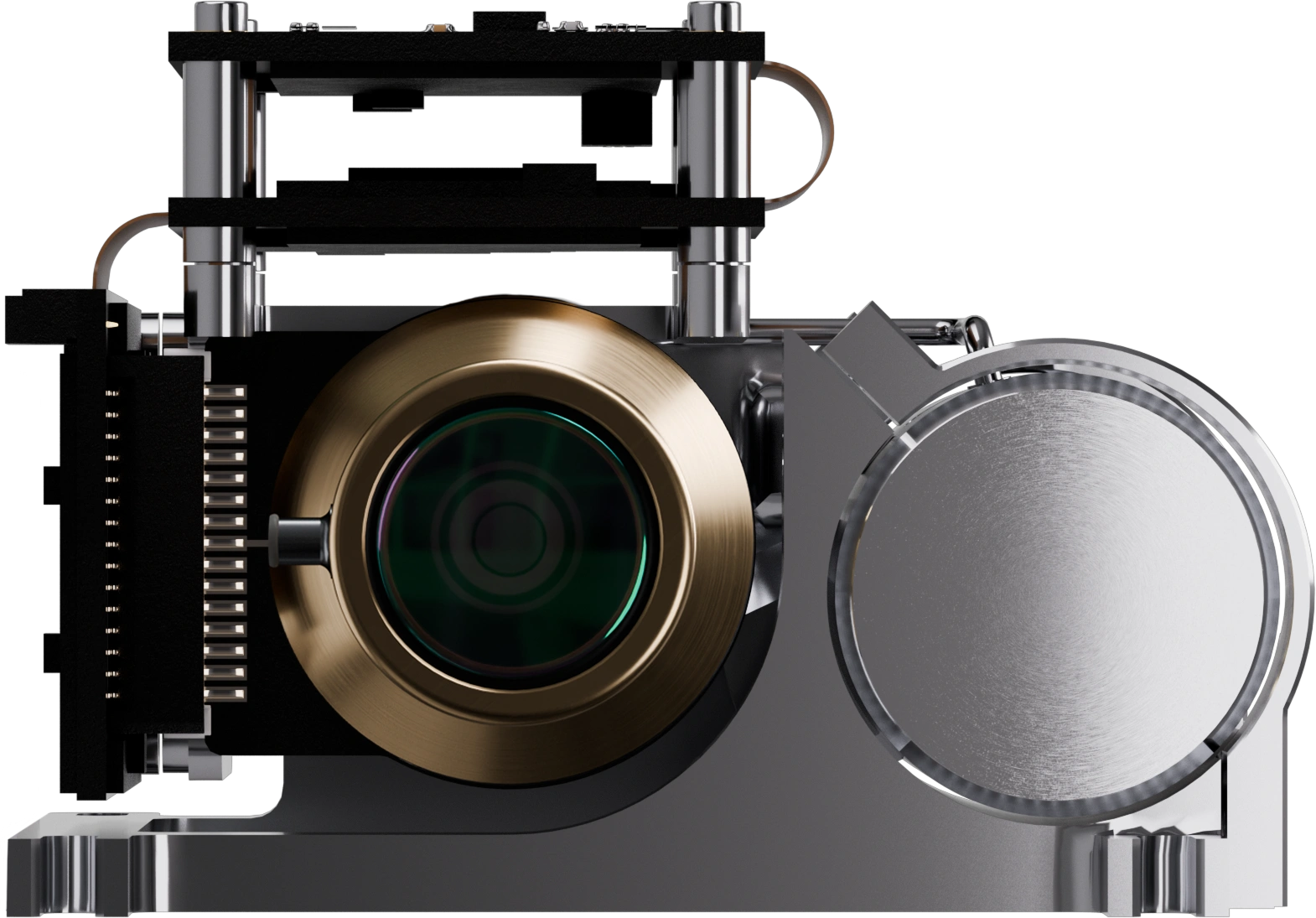

Njord MW SL
The Njord MW SL is a true masterpiece. Everything about it breathes perfection, from the flawless performance of its HOT T2SL material and the quality of its finely machined frame to the nearly completely silent split linear cooler. With its bold and innovative design, it pushes the boundaries of what is possible to achieve, all staying within a footprint so small it's hard to believe a detector of this magnitude fits inside.
Description
The Njord MW SL is a split linear cooler version of the state-of-the-art Njord MW detector. It has the same stunning imaging performance in SXGA HD format as the Njord MW with rotary cooler, but with its shorter optical axis length, it is the primary choice for certain applications like gimbal mounting in UAVs. It is also excellent for applications where reducing noise and vibrations is paramount, as it is nearly inaudible, and the combination of a high-quality split linear cooler and high operating temperature results in a very long cooler lifetime.
Applications
Long range security & surveillance
Space constrained systems (UAV gimbals, compact multisensor systems)
High performance ISR and targeting airborne gimbals
Handheld and battery powered systems (goggles, portable cameras)
Mobile and stationary platforms
General information
Application:
General purpose
Format:
1280x1024
Technology:
T2SL
Pixel pitch:
10 µm
Typical detector
performance
Spectral range:
3.7-5.1 μm
CO2 notch filter optional
F number options:
F/2, F/3.4, F/4
Custom F numbers available upon request
NETD:
25 mK@F/4
Pixel operability:
>99.5%
Frame rate:
Up to 60 Hz
Proximity electronics
Supply voltage:
5 V
Maximum frame rate:
60 Hz
Selectable frame rate supported
Electrical interfaces:
Camera Link
IDDCA Parameters
Cooler options:
K588
SX020, SX030 versions available
Power consumption:
4 W
Cool down time:
4 min
Cooler voltage:
12 V
Range 7.2-16 V
Weight and dimensions:
310 g 340 g including cooler controller board
77x69x54 mm Custom frame designs available upon request
Cooler MTTF:
>30 000 h
Environmental conditions:
MIL-STD-810
