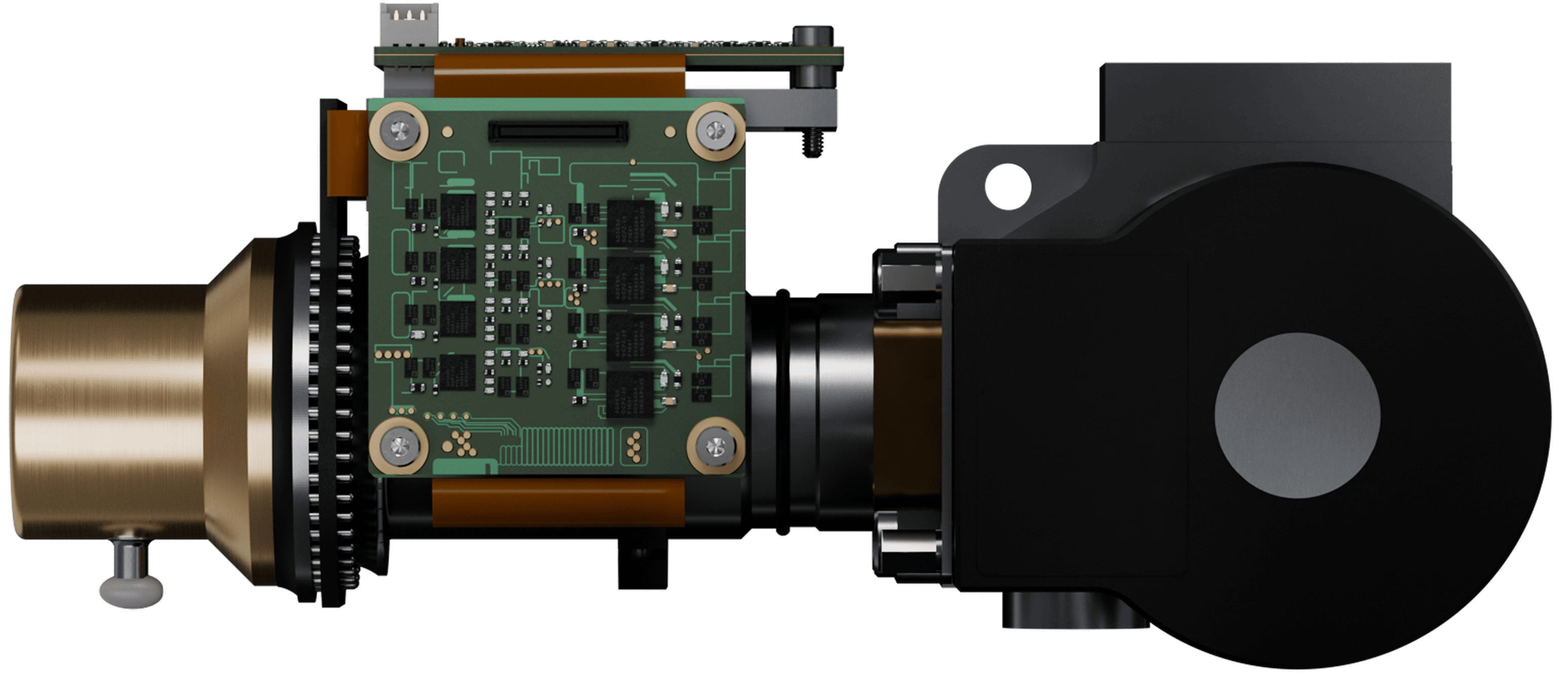

Oden LLT
Robust, reliant and ready. The superb Oden VGA detector in a full-sized package with a powerful cooler and an extreme lifetime. An infrared detector you can rely on, now and tomorrow.
Description
The Oden LLT is a long-lifetime version of the Oden detector for use in highly demanding applications. In this product variant we have put the top-performing T2SL FPA of the Oden in a dewar compatible with a 0.5 W cooler. When coupling such a powerful cooler with a HOT (high operating temperature) detector, one gets a a very attractive property: extremely long lifetime. Without compromising performance, it achieves 50 000 hours or more of expected lifetime, corresponding to nearly 6 years of 24/7 operation.
Applications
Long range security & surveillance
Air defence target tracking (including UAVs)
Border security and surveillance cameras
Fixed IP surveillance solutions
Tank sights, maritime applications and firefighting
Industrial applications (thermography, NDT etc.)
General information
Application:
General purpose
Format:
640x512
Technology:
T2SL
Pixel pitch:
15 µm
Typical detector
performance
Spectral range:
3.7-5.1 μm
CO2 notch filter optional
F number options:
F4, F/5.5
NETD:
20 mK
Pixel operability:
> 99.9 %
Frame rate:
60/120 Hz
Depending on proxy version
Proximity electronics
Supply voltage:
5 V
Maximum frame rate:
Selectable frame rate supported
Electrical interfaces:
Camera Link
Cooler control and proximity electronics included
IDDCA Parameters
Cooler options:
RM3, K508, K508N, SRI401
Other cooler options available
Power consumption:
3.5 W / 11 W
Steady state / Cooldown
Cool down time:
3.5 min
Cooler voltage:
12 V
24 V cooler options available
Weight and dimensions:
550 g
75x61x142 mm
Cooler MTTF:
>50 000 h
Environmental conditions:
MIL-STD-810
Downloads
Product leaflet
T2SL
Oden LLT
EvalKit
Building something new? Our evaluation kits have everything you need to try our detectors and design your camera system. They’re modular and include a power supply, frame-grabbing electronics, image acquisition software and optics.
Plug in and get going in minutes!
Technical characteristics described above are not contractual and may change without prior notice. This is revision 1.0.
