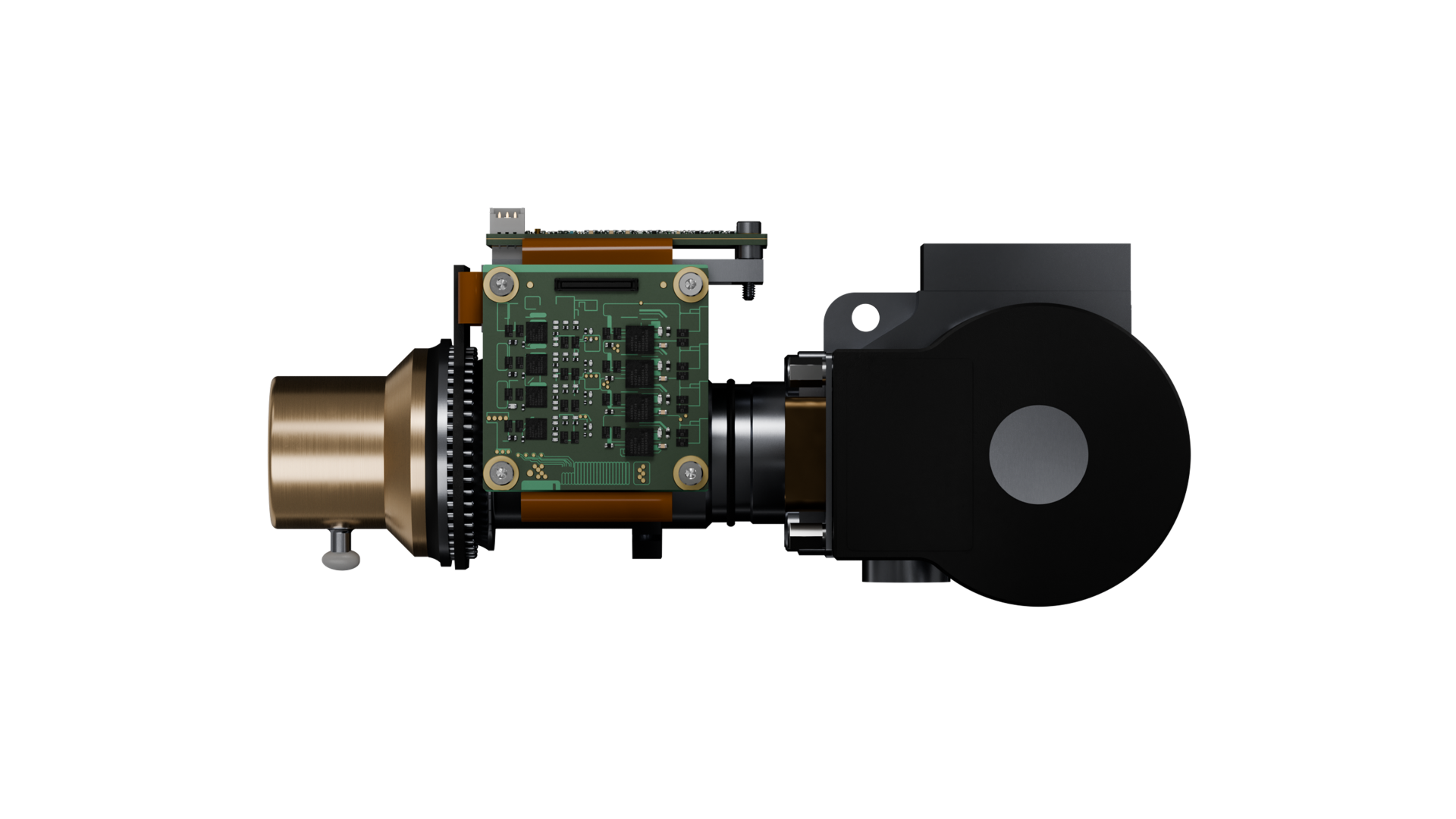

Hnoss 330 LLT
The Hnoss 330 LLT, equipped with our advanced T2SL technology and 640x512 resolution, transforms optical gas imaging (OGI). Optimised for fixed and mobile installations, it boasts a long-life cooler and its higher resolution allows for a larger field of view.
Description
The T2SL Hnoss 330 LLT offers unmatched sensitivity and image quality. Its increased resolution makes the Hnoss 330 LLT ideal for both mobile and stationary platforms and 24/7 monitoring. Whether detecting methane, ethane, propane, or other VOC gases, the Hnoss 330 LLT is engineered for precision and reliability, redefining OGI standards in the spectral range of 3.3 µm.
Applications
Optical gas imaging for any gas with absorption in the 3.3 µm range
Optimized for detection of methane, ethane, propane and other VOC gases
Mobile and stationary platforms
Fixed 24/7 large area surveillance
Handheld and battery powered cameras
General information
Application:
Gas & pollution detection
Format:
640x512
Technology:
T2SL
Pixel pitch:
15 μm
Typical detector
performance
Spectral range:
3.2 - 3.4 μm
F number options:
F1.2
NETD:
16 mK @ F1.2, 30 Hz
Pixel operability:
99.9 %
Frame rate:
30 Hz
Proximity electronics
Supply voltage:
12 V
24 V options available
Maximum frame rate:
60 Hz
Electrical interfaces:
Camera Link
Cooler control and proximity electronics included
IDDCA Parameters
Cooler options:
RM3i
K508, K508N, SRI401 available
Power consumption:
3.5 W
Without proximity electronics
Cool down time:
3 min
Cooler voltage:
12 V
24 V cooler options available
Weight and dimensions:
590 g
133x76x66 mm
Cooler MTTF:
>50 000 h
Environmental conditions:
MIL-STD-810
Downloads
Product leaflet
T2SL
Hnoss 330 LLT
EvalKit
Building something new? Our evaluation kits have everything you need to try our detectors and design your camera system. They’re modular and include a power supply, frame-grabbing electronics, image acquisition software and optics.
Plug in and get going in minutes!
Technical characteristics described above are not contractual and may change without prior notice. This is revision 1.0.
